Hardware security · Self-hosted AI · Founded 2025

Own your root of trust. Keep your AI in‑boundary.

RAE is a hardware-security startup building BootProtect — post-quantum, owner-controlled secure boot that retrofits FPGAs already in the field — and Reg, the self-hosted AI engineering companion that keeps CUI and ITAR work inside your security boundary.

See the technology Download the product briefs
Securing today's systems from tomorrow's threats

Our technology

Three products. One thesis: you should own your security.

Patent-pending silicon IP that makes fielded FPGAs quantum-safe, and a self-hosted AI platform that brings frontier-class engineering assistance inside the compliance boundary.

BootProtect

Patent-pending Errantry IP · with IC-Safety

Today's roots of trust are manufacturer-anchored: a vendor-fused key, checked by RSA/ECC hard logic that can't be patched. CNSA 2.0 puts National Security Systems on a 2030–2035 post-quantum timeline — and for fielded FPGAs, the only conventional path is replacing the silicon.

BootProtect re-creates the bitstream decryption key from the chip's own silicon fingerprint — nothing stored, nothing to extract, no asymmetric cryptography anywhere in the chain.

  • Retrofit, not replace: reconfiguration alone, no recertification
  • Post-quantum by construction: AES-256 + SHA2, zero asymmetric primitives
  • Owner-controlled keys with in-field re-keying
  • SiRF PUF independently assessed by Sandia National Laboratories
Read the BootProtect brief →
BootProtect — post-quantum, owner-controlled secure boot for fielded FPGAs PATENT-PENDING ERRANTRY IP · WITH IC-SAFETY TODAY — MANUFACTURER-ANCHORED SECURE BOOT Vendor-fused key eFuse · mask ROM · helper data RSA / ECC signature check hard logic — not patchable Boot ✗ the manufacturer owns your trust anchor ✗ classical crypto falls to quantum — and is fixed in silicon ✗ CNSA 2.0 fix = replace the silicon WITH BOOTPROTECT Power-on SiRF PUF unique silicon fingerprint recreates Boot key from PoRB never stored — owner-enrolled Authenticate + decrypt design AES-256 + SHA2 — no asymmetric Boot ✓ retrofits FPGAs already in the field ✓ nothing stored to steal ✓ post-quantum by construction • TAMPER-EVIDENT — any change to the protected bitstream breaks key re-creation and blocks boot • DPR TEARDOWN — BootProtect vacates the fabric after handoff; steady-state footprint approaches zero • CNSA 2.0 — meets the post-quantum transition through reconfiguration alone, years ahead of a silicon refresh

Manufacturer-anchored boot vs. BootProtect's owner-controlled, symmetric-only chain.

AES Crypto

Patent pending

Even strong cryptography leaks. Power-analysis attacks (SPA/DPA) recover secret keys by watching a chip's power draw. AES Crypto — the side-channel-hardened engine inside BootProtect, also available as standalone IP — makes those attacks see only noise.

  • Dual AES cores in lock-step, exchanging valid and decoy data
  • PUF-based TRNG injects fresh masking into every operation
  • Same block, different power signature — every single run
  • Drops in as a VHDL block on most FPGA families
Talk to us about licensing →
AES Crypto — side-channel-hardened AES with integrated PUF PATENT PENDING PUF-based TRNG fresh random masks, every operation mask mask Data block plaintext in AES core A lock-step instance 1 AES core B lock-step instance 2 valid ⇄ decoy data exchange Data block ciphertext out power draw WHAT AN ATTACKER MEASURES — SAME BLOCK, TWO RUNS run 1 run 2 The power signature differs on every operation — even for the identical block — so SPA/DPA analysis sees only noise.

Masked lock-step execution: an attacker never sees the same power signature twice.

Reg

Self-hosted · CUI/ITAR-safe · U.S.-origin models

Commercial AI assistants process every prompt in a vendor cloud — disqualifying for CUI and ITAR work. Reg inverts the trust model: the data stays put, and the models come to it.

Air-gapped on hardware you own, Reg is a full engineering copilot — chat, documents, mail and calendar with human-approval gates — plus a verified FPGA/VHDL toolchain no other AI system offers.

  • No prompt, document, or design ever leaves your boundary
  • U.S.-origin models only — no PRC-origin weights, even air-gapped
  • Verified VHDL: only code that passes simulation ships
  • FPGA sign-off across Microchip, Lattice, AMD/Xilinx, Altera
  • In production today — Reg runs RAE's own engineering
Read the Reg brief →
Reg — the in-boundary AI companion for the Defense Industrial Base SELF-HOSTED · U.S.-ORIGIN MODELS YOUR SECURITY BOUNDARY — AIR-GAPPED, CUSTOMER-OWNED HARDWARE Your team AD login, per-user Reg chat · documents · mail + calendar draft → approve gates outbound REASONING LADDER Fast local router — 30B everyday chat + tool use Deep reasoning — 120B hard multi-step problems Frontier — 400B-class hardest reasoning + long context escalates VERIFIED FPGA / VHDL TOOLCHAIN generate → compile → simulate → repair — only code that passes ships implementation sign-off on 4 vendors: Microchip · Lattice · AMD/Xilinx · Altera synthesis → place & route → timing → bitstream, hundreds of modules verified per vendor Cloud AI vendor-hosted assistants ✗ ROUTING GUARD: non-CUI work only — controlled data never leaves the boundary • U.S.-ORIGIN MODELS ONLY — no PRC-origin weights, even air-gapped • IN PRODUCTION TODAY — Reg runs RAE's own daily engineering work

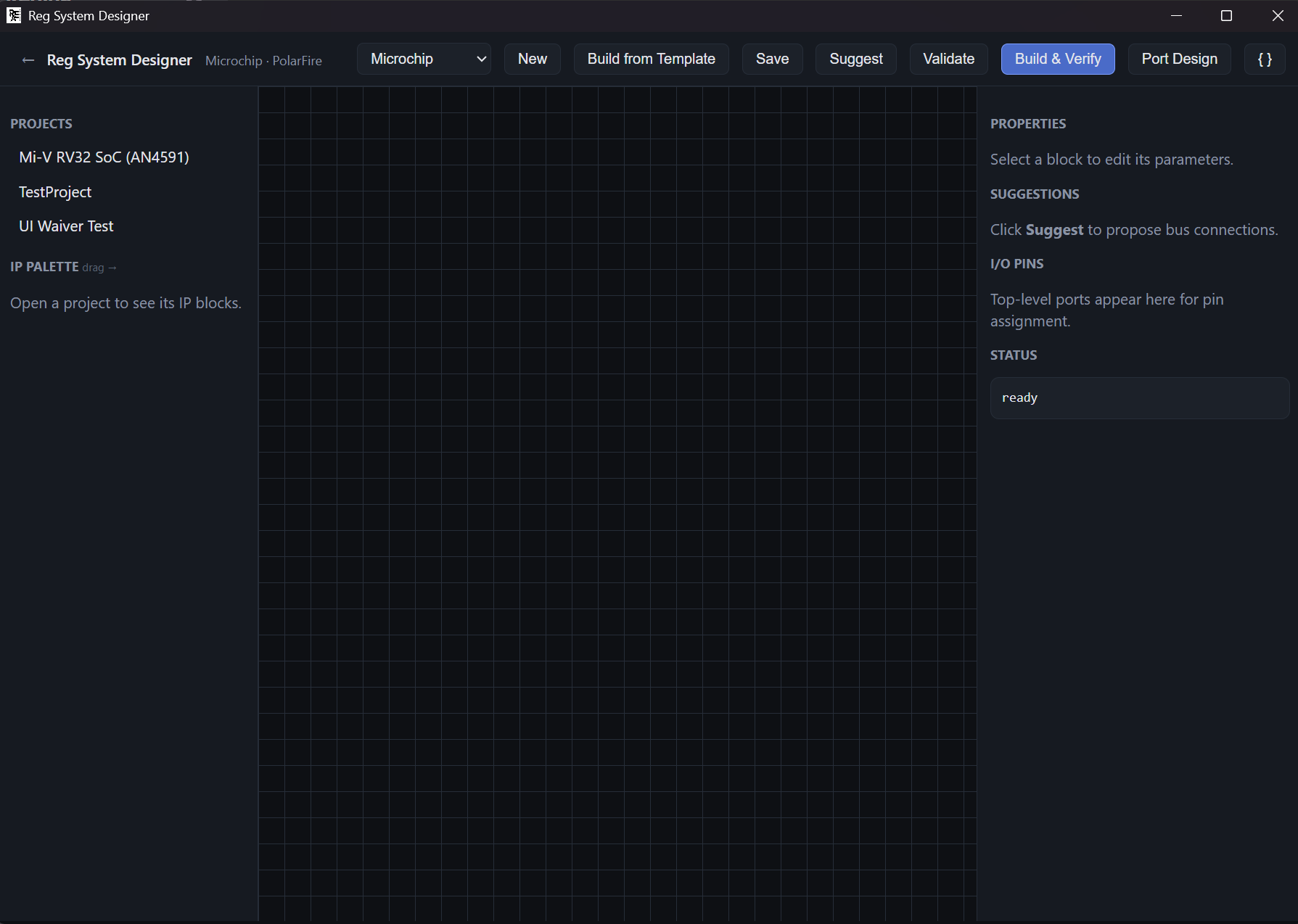

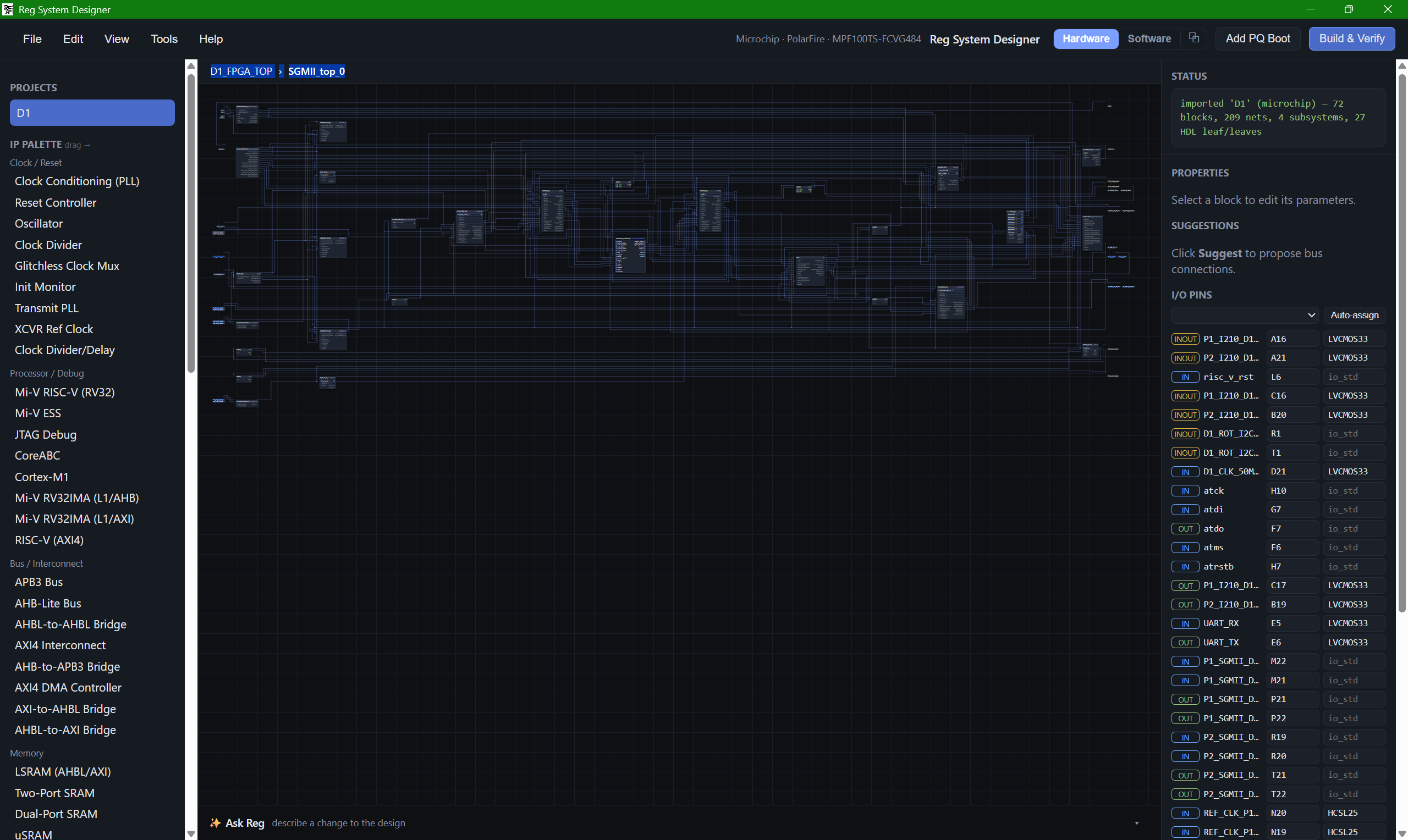

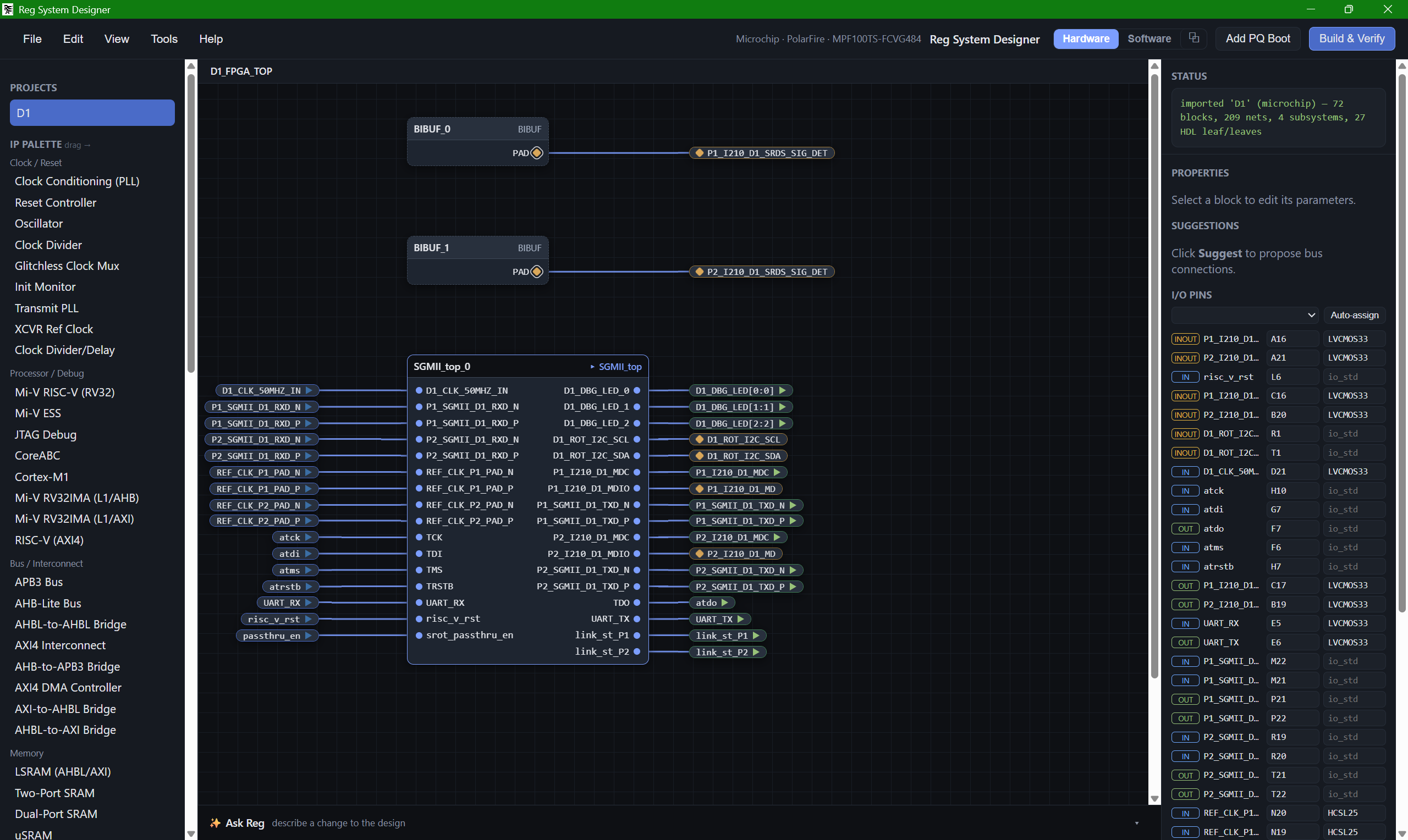

Reg System Designer targeting Microchip PolarFire, with build-from-template, validate, and build-and-verify controls

Reg's System Designer: vendor-targeted FPGA design with build-and-verify in the loop.

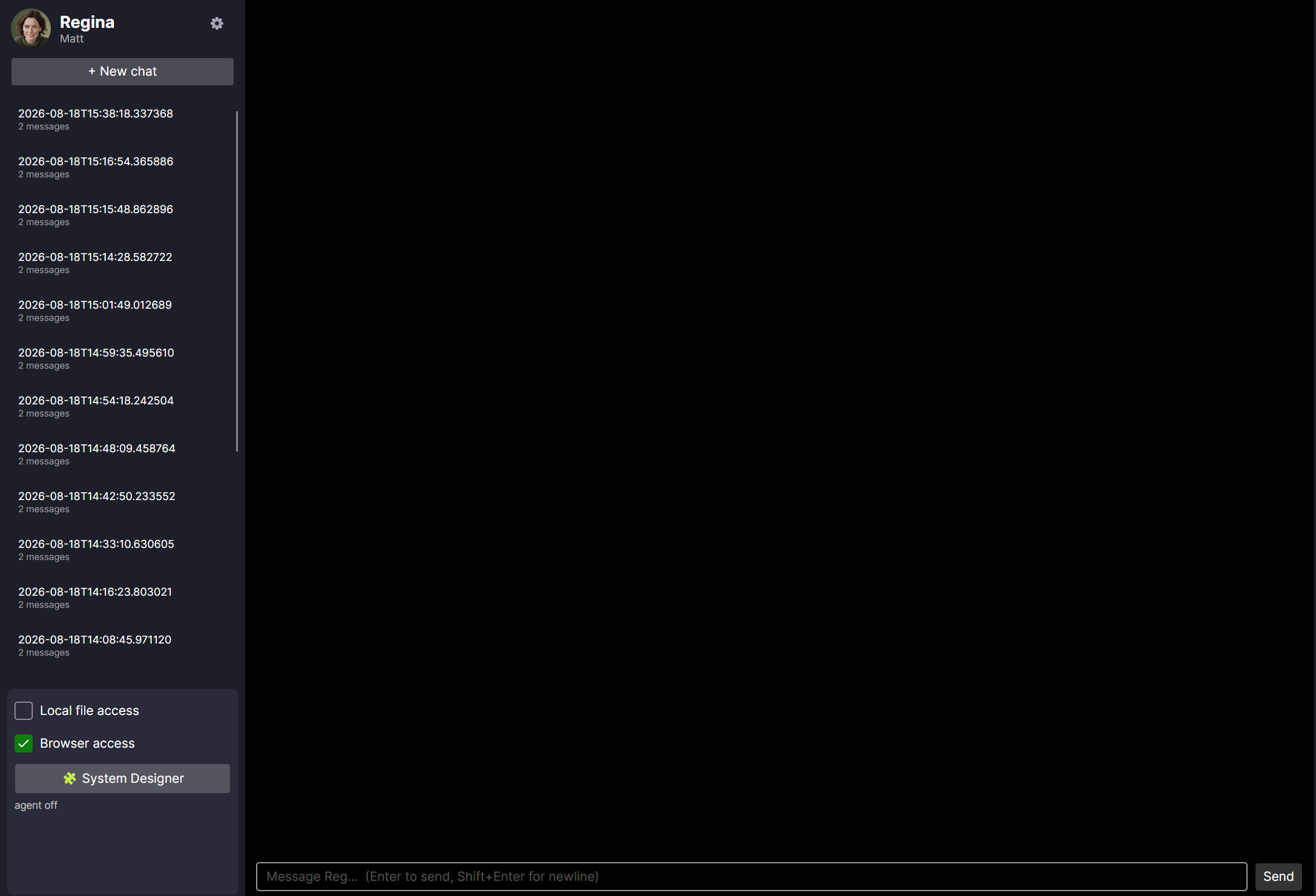

Reg chat workspace with per-user conversations and gated local file and browser access

The Reg workspace: per-user conversations, with file and browser access gated per session.

Product literature

The briefs

BootProtect Product Brief
PDF · 3 pages
Download
Reg Product Brief
PDF · 2 pages
Download

About RAE

A startup securing the silicon — and the AI — the defense world runs on

Our mission: put the defense world's most critical technology back under its owners' control.

Fielded FPGAs boot through vendor-fused keys and quantum-vulnerable cryptography that can't be patched. Modern AI lives in clouds that CUI and ITAR data can never touch. RAE builds products that close both gaps.

BootProtect (patent-pending Errantry IP, with partner IC-Safety) retrofits post-quantum-resistant, owner-controlled secure boot onto FPGAs already in the field. AES Crypto hardens encryption against power-analysis attacks. And Reg delivers a frontier-class AI engineering companion entirely inside the customer's security boundary — the same system RAE runs its own engineering on today.

Our founding team brings decades of hardware-security experience from Sandia National Laboratories, Raytheon, and Intel. Alongside the product roadmap, we run a hands-on security-engineering practice: it keeps our products grounded in the hardest real-world problems, and it funds our development.

Founded
2025 · Hutto, Texas
Ownership
U.S.-owned, woman-owned small business
Compliance posture
CMMC Level 2 (self) · ITAR/EAR-aware
Products
BootProtect · AES Crypto · Reg
Validation
SiRF PUF assessed by Sandia National Laboratories

Founders & Team

Founded in 2025 by Cylinda Rickert Areno and Matthew Areno

Cylinda Rickert Areno

Cylinda Rickert Areno

Co-founder, Owner & CEO

Cylinda leads RAE's business operations: personnel, finance, contracts, compliance, program management, and communications. As majority owner, she leads RAE as a certified woman-owned small business.

LinkedIn
Matthew Areno, PhD

Matthew Areno, PhD

Co-founder & CTO

Matt sets RAE's technical direction after two decades in hardware security: embedded-systems vulnerability assessment at Sandia, anti-tamper Chief Architect at Raytheon, and Senior Principal Engineer at Intel, where roles included Senior Director of Security Assurance and Cryptography. His PhD research on PUF-enhanced cryptographic units is the line behind BootProtect.

LinkedIn
Trevor Hird

Trevor Hird

Principal Design Engineer

Trevor brings 18 years of FPGA design and security-architecture experience to RAE's product implementations, from RTL through fielded hardware.

LinkedIn

Engineering services

The practice that keeps our products honest

Two decades of hardware-security experience, available on your systems directly — and the reason our products stay grounded in real-world attacks.

01Secure Boot & Anti-Tamper
02Cryptography & Key Management
03FPGA & Silicon Security
04Processor & Platform Security
05Systems Architecture
06Self-Hosted AI Systems
Ask about an engagement →

Customers & partners

Intel
MITRE
Trenton Systems
MMEC — Midwest Microelectronics Consortium
IC-Safety
